Remote Transmitters

Below is the Megatronix remotes and transmitters guide chart. For full sized picture, click on the remote model number. If you do not see your remote, make sure you check the "Replaces" column on the far right end and confirm with image and FCC ID #.



MODEL
DESCRIPTIONFREQ
FCC ID:
COMPATIBILITY
REPLACES

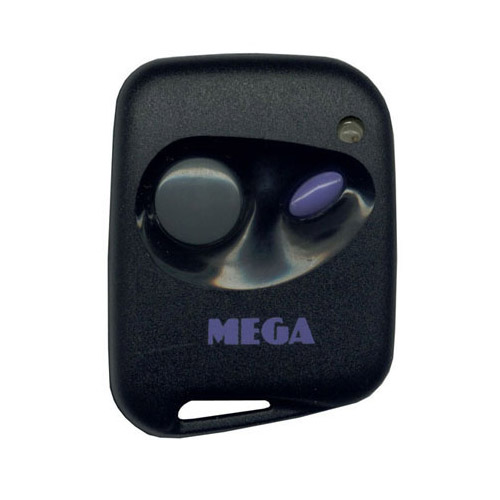

MT50 (Black)

MT50 (Gray)
2-BUTTON
FIXED CODE HOPPING
RED LED (CLEAR WHEN OFF)
AM
433MHZ
 MEGA 1100, 1200
VS 1125, 1225
CP 1100, 1200


MT51
2-BUTTON
RANDOM CODE HOPPING
RED LED (RED WHEN OFF)
AM
433MHZ
IYH1000T, IYHSTAR1T
MEGA 110, 111
VS 111, 115

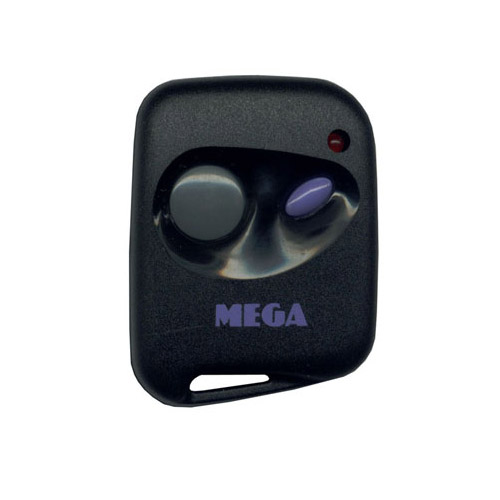

MT52 (Black)

MT52 (Gray)
2-BUTTON
RANDOM CODE HOPPING
RED LED (RED WHEN OFF)
AM
310MHZ
H5O603, H50603
MEGA 100, 101, 140, 550
MEGA I, II, III, IV, V, M
VS 121, 125, 140
CP 615
MT
(FCC: H5O600-2, H50600-2) RED LED
KTX
(FCC: H5OT02, H50T02) RED LED
MTK2
(FCC: H5O603, H50603) RED LED
MTX
(FCC: KB8602) RED LED

MT53
3-BUTTON
FIXED CODE HOPPING
BLUE LED (CLEAR WHEN OFF)
AM
433MHZ
SAW
 MEGA 1300
VS 1325
CP 300

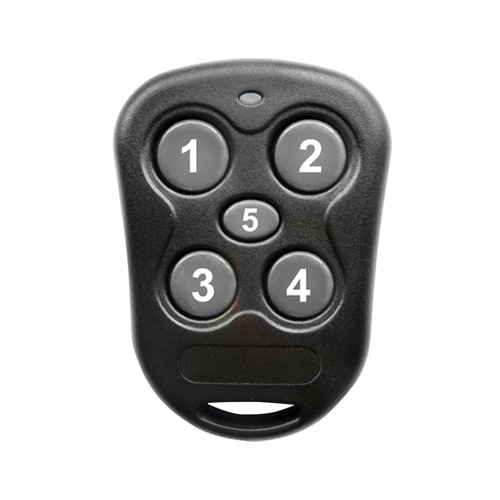

MT54
5-BUTTON
FIXED CODE HOPPING
BLUE OR RED LED (CLEAR WHEN OFF)
AM
433MHZ
SAW
 CP 500




MT66 (Black)

MT66 (Gray)
5-BUTTON
RANDOM CODE HOPPING
RED LED (RED WHEN OFF)
AM
310MHZ
H5OT12, H50T12
MEGA 600, 700
RS 240
CP 633

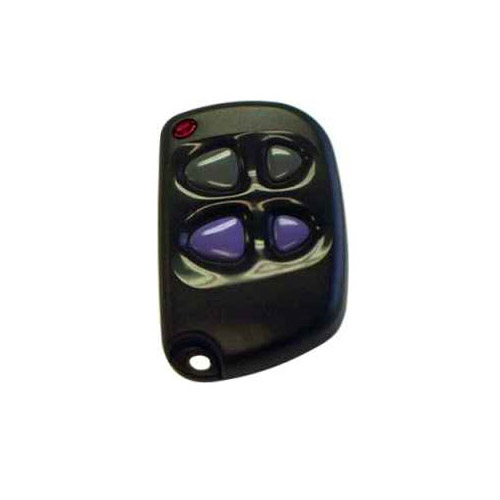

MT4 / MTK4 / VTK4
(FCC: H5O604, H50604) RED LED
MT55
(FCC: H5OT06, H50T06) RED LED
MT65 / VT65
(FCC: H5OT06, H50T06) RED LED



MT66H (Black)

MT66H (Gray)
5-BUTTON
RANDOM CODE HOPPING
ORANGE LED (ORANGE WHEN OFF)
AM
433MHZ
H5OT12, H50T12
MEGA 450, 450J, 460, 462, 470, 474, 474L, 660, 670, 670L
VS 315, 425, 425J, 435, 465, 474, 474L, 645, 645L
KE 470, 474, 474L, 530, 531, 550, 551

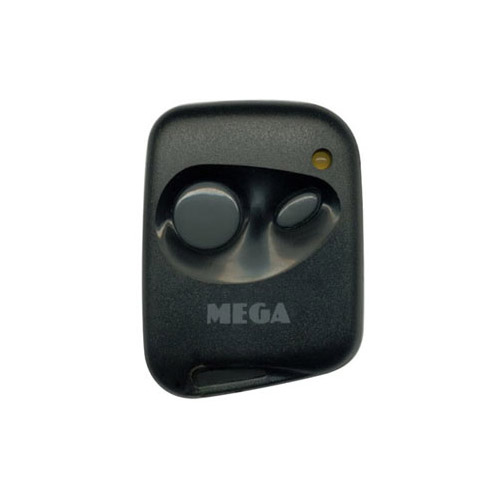

MT52H / VT52H
(FCC: H5OT10, H50T10) ORANGE LED
MT55C
(FCC: H5OT09, H50T09) GREEN LED

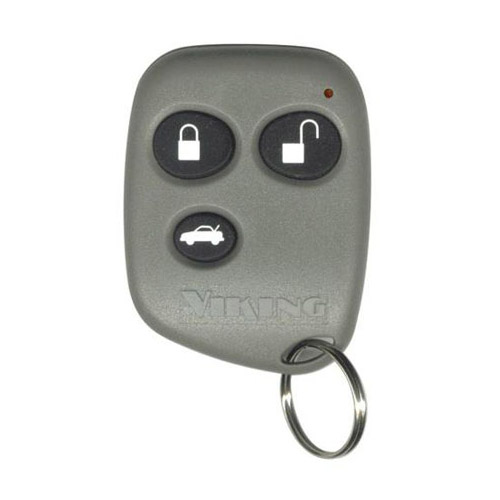

MT63 / VT63
(FCC: H5OT10, H50T10) ORANGE LED

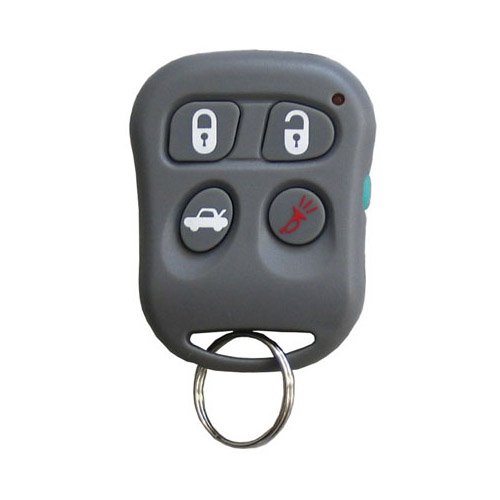

MT65H / VT65H
(FCC: H5OT11, H50T11) ORANGE LED

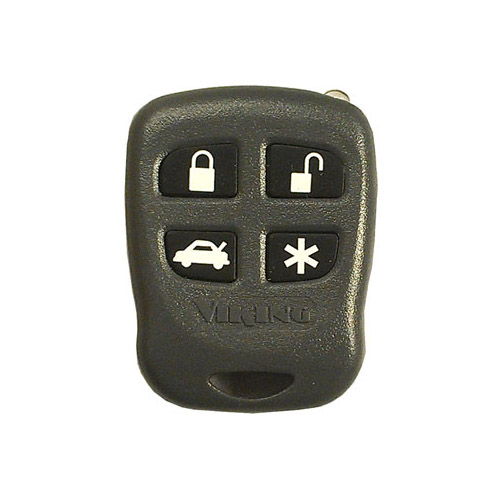

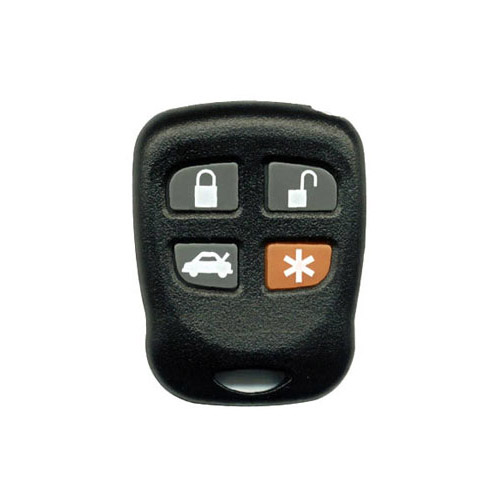

MT67 / VT67
(FCC: H5OT19, H50T19) ORANGE LED
TPTX
(FCC: H5OT11, H50T11) ORANGE LED



MT75S (Black)

MT75S (Blue)
4-BUTTON
RANDOM CODE HOPPING
BLUE, GREEN, OR ORANGE LED (CLEAR WHEN OFF)
AM
433MHZ
SAW
H5OT21, H50T21
MEGA 250, 680, 2400, 3400
VS 255, 655, 2400, 3425
KE 680

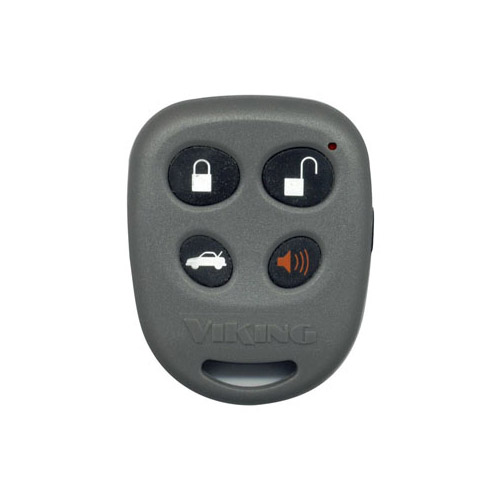

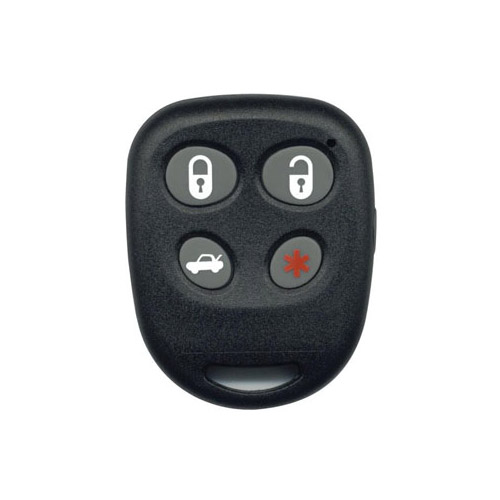

MT66C / VT66C
(FCC: H5OT13, H50T13) GREEN LED
MT68 / VT68
(FCC: H5OT12, H50T12) BLUE LED
MT71 / MT73
(FCC: H5OT21, H50T21)
GREEN LED

MTR-II
3-BUTTON
RANDOM CODE HOPPING
ORANGE LED (ORANGE WHEN OFF)
AM
433MHZ
  MEGA 3000
VS 3025




MTR-5 (Black)

MTR-5 (Gray)
5-BUTTON
RANDOM CODE HOPPING
ORANGE LED (ORANGE WHEN OFF)
AM
433MHZ
 MEGA 3004
VS 3030


TPTAG
TRANSPONDER TAG
FIXED CODE HOPPING
AM
134KHz
 TP34


TW30C
3-BUTTON 2-WAY LCD
RANDOM CODE HOPPING
WITH CLOCK
*** DISCOUNTINUED ***
FM/FM
447MHZ
FSK
OARR447675


TW70
5-BUTTON 2-WAY LCD
RANDOM CODE HOPPING
*** DISCOUNTINUED ***
FM/FM
433MHZ
FSK
H5OTR05, H50TR05
MEGA 3600
VS 3625
MT70 (FCC: H5OT18, H50T18) ORANGE LED

TW71
5-BUTTON 2-WAY LCD
RANDOM CODE HOPPING
AM/AM
433MHZ
SAW
H5OTR11, H50TR11
MEGA 3100
VS 3125


TW72
4-BUTTON 2-WAY LCD
RANDOM CODE HOPPING
AM/AM
433MHZ
SAW
H5OTR17, H50TR17
MEGA 2000, 2500, 2700
VS 2000, 2500, 2700

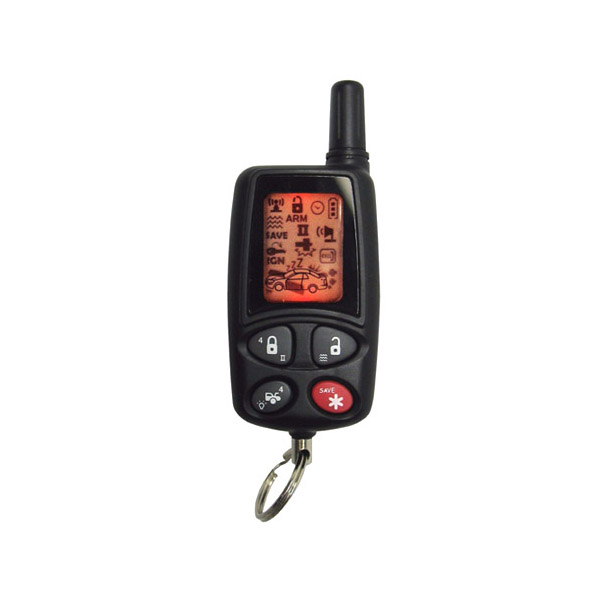

TW74 (FCC: H5OTR13, H50TR13)

TW75
5-BUTTON 2-WAY LCD
RANDOM CODE HOPPING
AM/AM
433MHZ
SAW
H5OTR11, H50TR11
MEGA 2550, 2600, 3700
VS 2575, 2625, 3725
TW73 (FCC: H5OTR11, H50TR11)
TW76 (FCC: H5OTR07AM, H50TR07AM)

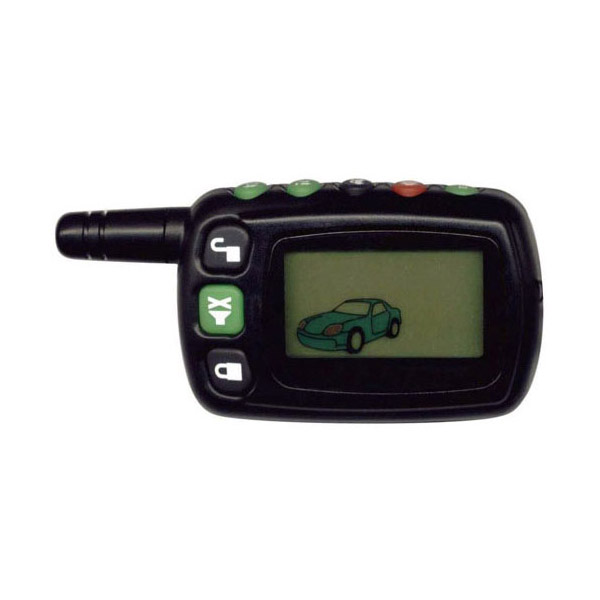

TW85
8-BUTTON 2-WAY LCD
RANDOM CODE HOPPING
*** DISCOUNTINUED ***
AM/FM
433MHZ
SAW
H5OTR01, H50TR01
MEGA 3500
VS 3525
VT80 (FCC: H5OT16, H50T16) ORANGE LED

TW530
5-BUTTON 2-WAY LCD
RANDOM CODE HOPPING
*** DISCOUNTINUED ***
FM/FM
447MHZ
FSK
OARR447675
